| Product Description | |
| Band | CP Plus |

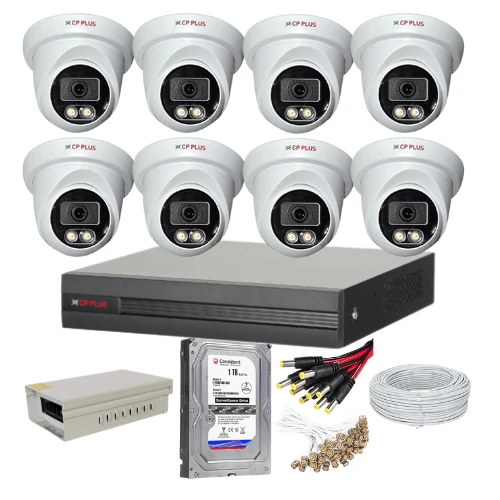

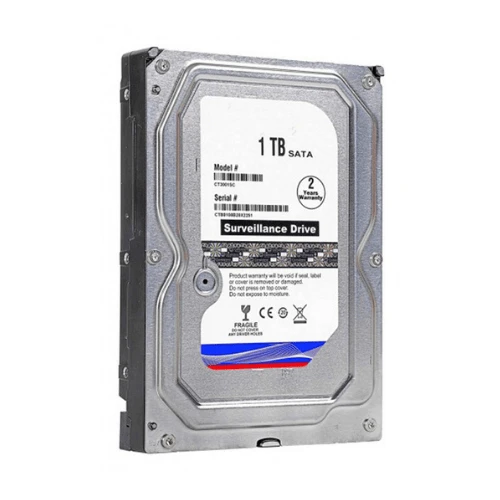

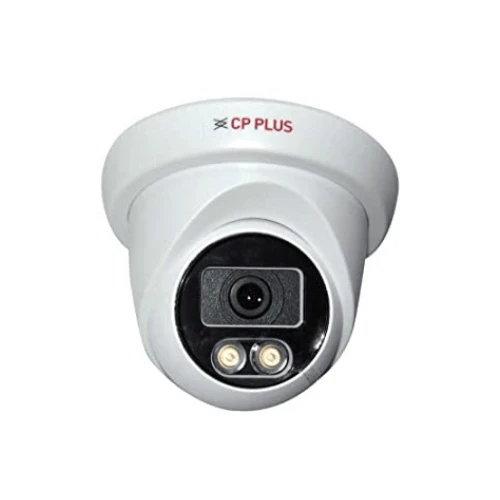

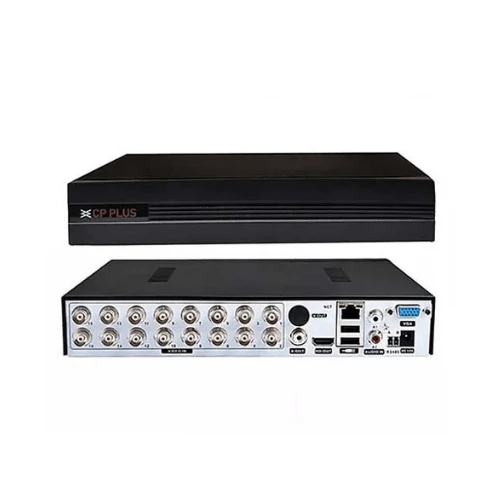

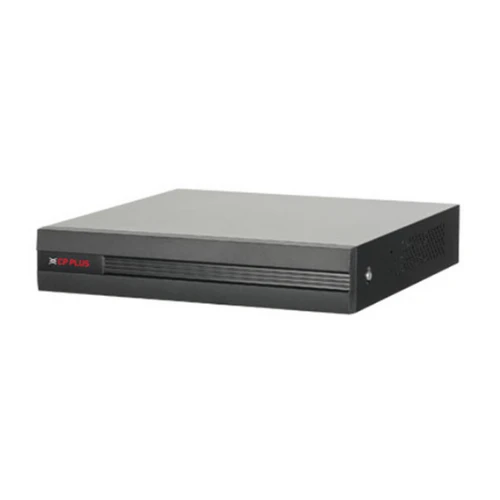

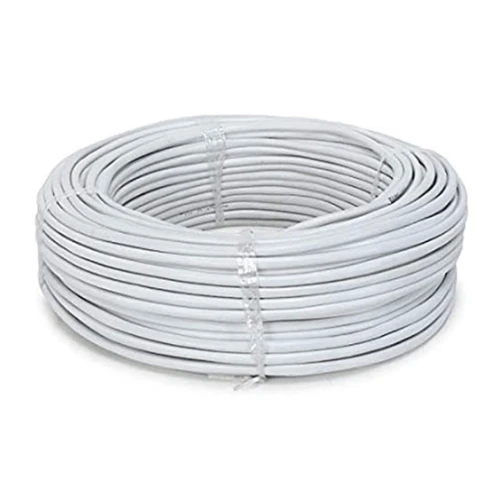

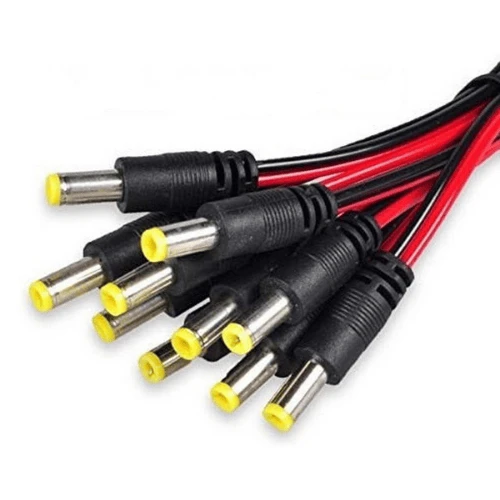

| Package Details | 1 Pcs 16 Ch DVR ( CP-UVR-1601E1-CV2 ),, Color illumax Dome Camera 8 Pcs (CP-URC-TC24PL2-V3),1 Pcs 1TB HDD,16 DC,1 COIL 90 Mtr Wire |
| Camera Type | HD |
| Number Of Channel | 16 |
| Processor | Embedded processor |
| Video Input | 16 Channel |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression | Instastream/H.265/H.264+/H.264 |
| Video Resolution | 1920×1080, 1280×1024, 1280×720 |
| Resolution | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Video Recording | Main Stream: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps); Sub stream: CIF/QCIF (1~15fps) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Bit Rate | 32 kbps–4096 kbps per channel |
| Audio Input /Output | 1 channel, RCA |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 6TB capacity |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Backup Mode | USB Device/Network |
| Interface Ports | 2 USB Ports (USB 2.0) |
| Max User Access | 128 users |
| Ethernet | 1 RJ-45 port (100Mbps) |
| Power Supply | DC12V/1.5A |
| Power Consumption | <10W (without HDD) |
| Dimensions | 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
